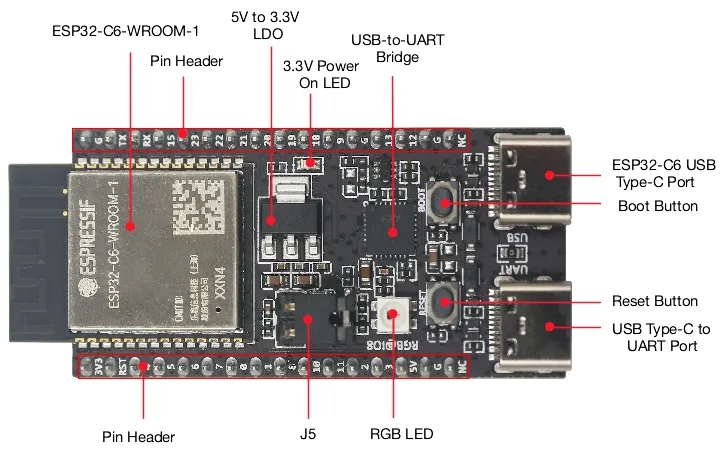

ESP32-C6-WROOM-1 Development Board, Wi-Fi 6, Dual USB-C
- Part number
- –
- Manufacturer
- –
- Package
- –
Antenna On-board PCB antenna
Bluetooth Bluetooth LE 5.3, mesh
CPU Single-core 32-bit RISC-V, up to 160 MHz
Chip ESP32-C6
GPIO 23 (module)
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Only 1 in stock
Extended price $1.00
- Antenna
- On-board PCB antenna
- Bluetooth
- Bluetooth LE 5.3, mesh
- CPU
- Single-core 32-bit RISC-V, up to 160 MHz
- Chip
- ESP32-C6
- GPIO
- 23 (module)
- IEEE 802.15.4
- Thread 1.3, Zigbee 3.0
- Memory
- 512 KB HP SRAM, 16 KB LP SRAM, 320 KB ROM
- Module
- ESP32-C6-WROOM-1 (Espressif)
- Operating temperature (°C)
- -40 ~ +85 (module)
- Peripherals
- SPI, I2C, I2S, UART, PWM, MCPWM, RMT, ADC, TWAI (CAN), SDIO slave, USB Serial/JTAG
- Software support
- ESP-IDF, Arduino IDE
- Supply voltage
- 5 V via USB (module 3.0 ~ 3.6 V)
- USB port
- 2 × USB-C (power, programming, serial)
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4 GHz, compatible with 802.11 b/g/n
