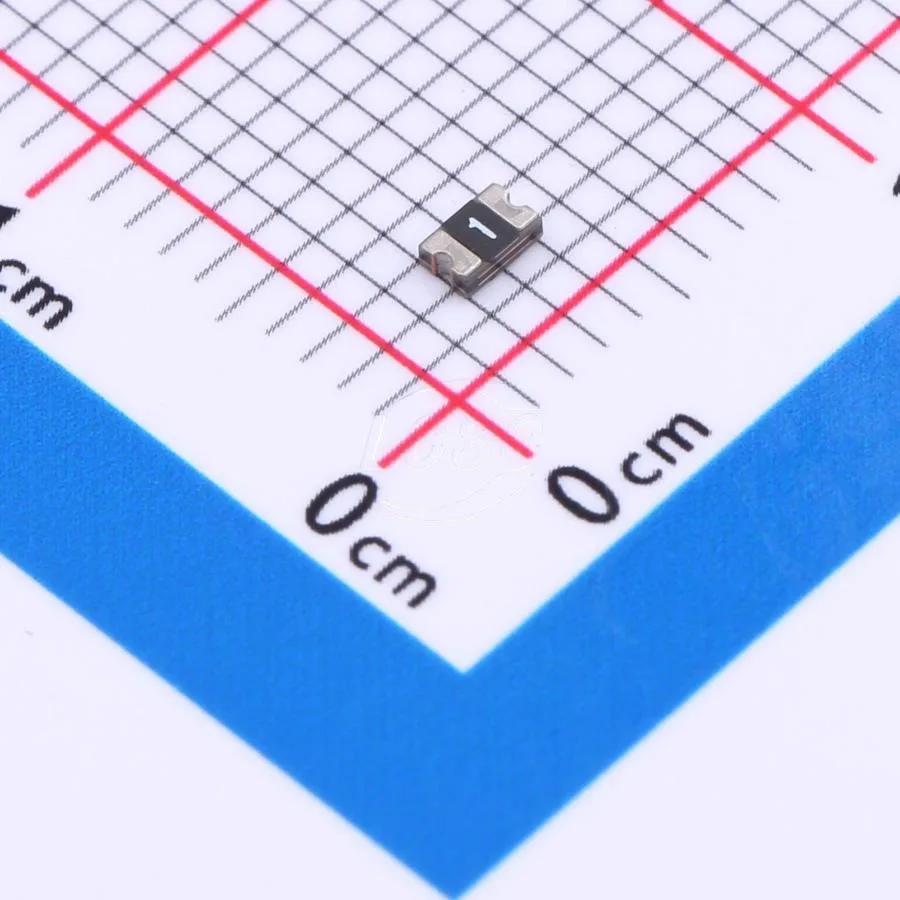

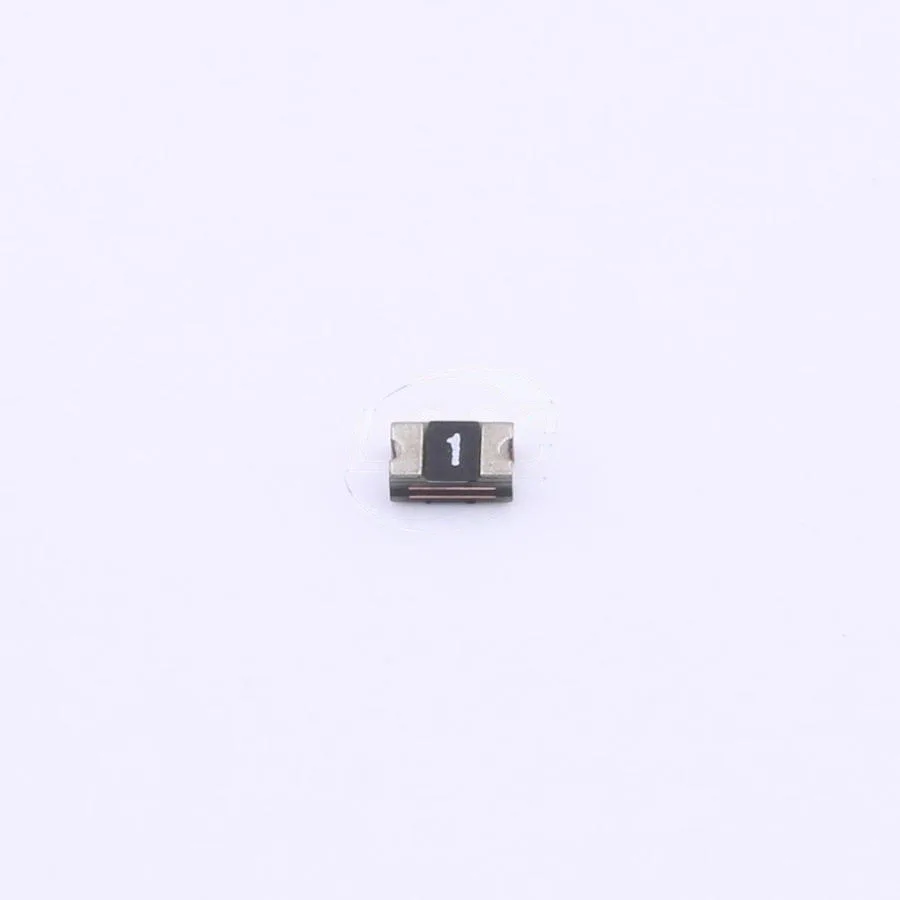

ASMD0805-010 Resettable PTC Fuse, 100mA 30V, 0805
- Part number
- C2982259
- Manufacturer
- JDTfuse
- Package
- 0805
Height 0.9mm
Hold current 100mA
Initial resistance (25 °C) 750mΩ
Length 2.2mm
Max fault current 100A
In stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Height
- 0.9mm
- Hold current
- 100mA
- Initial resistance (25 °C)
- 750mΩ
- Length
- 2.2mm
- Max fault current
- 100A
- Operating temperature (°C)
- -40 ~ +85
- Post-trip resistance (R1 max)
- 6Ω
- Power dissipation
- 500mW
- Time to trip (max)
- 1.5s
- Trip current
- 300mA
- Voltage rating (V)
- 30
- Width
- 1.5mm
