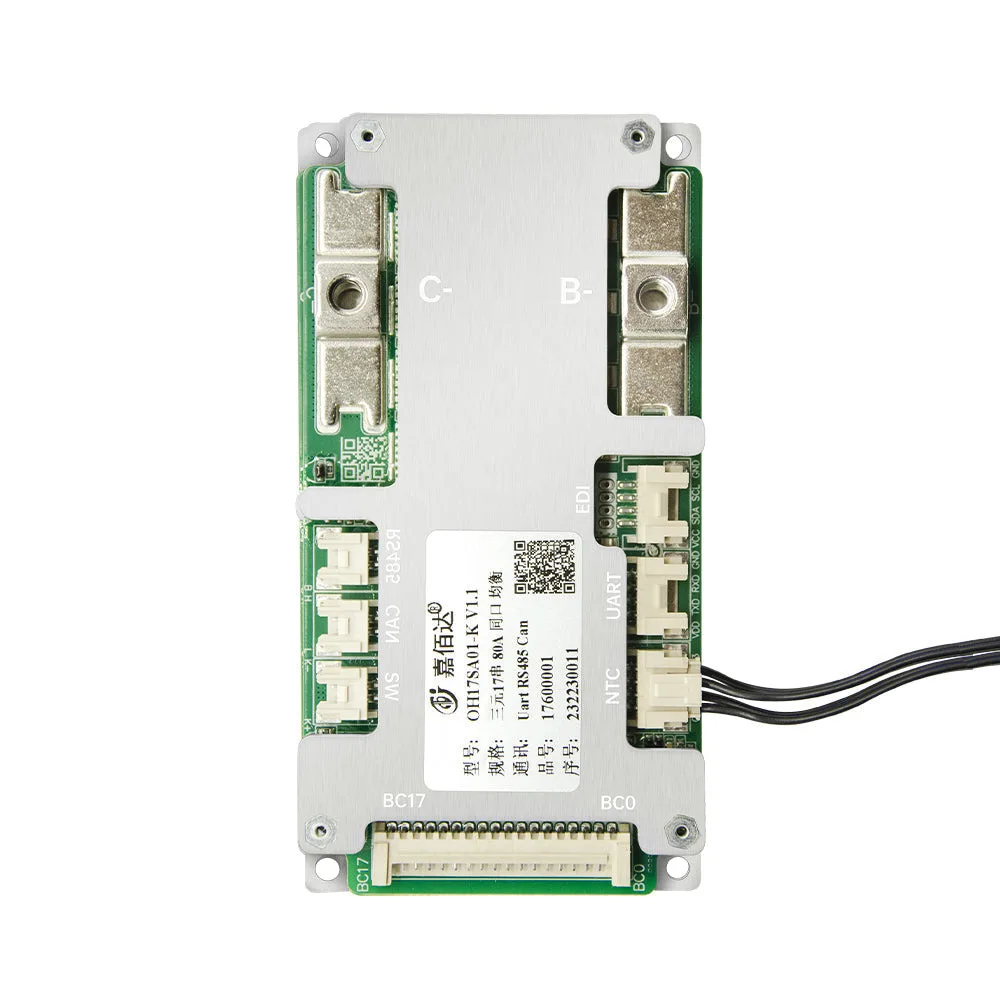

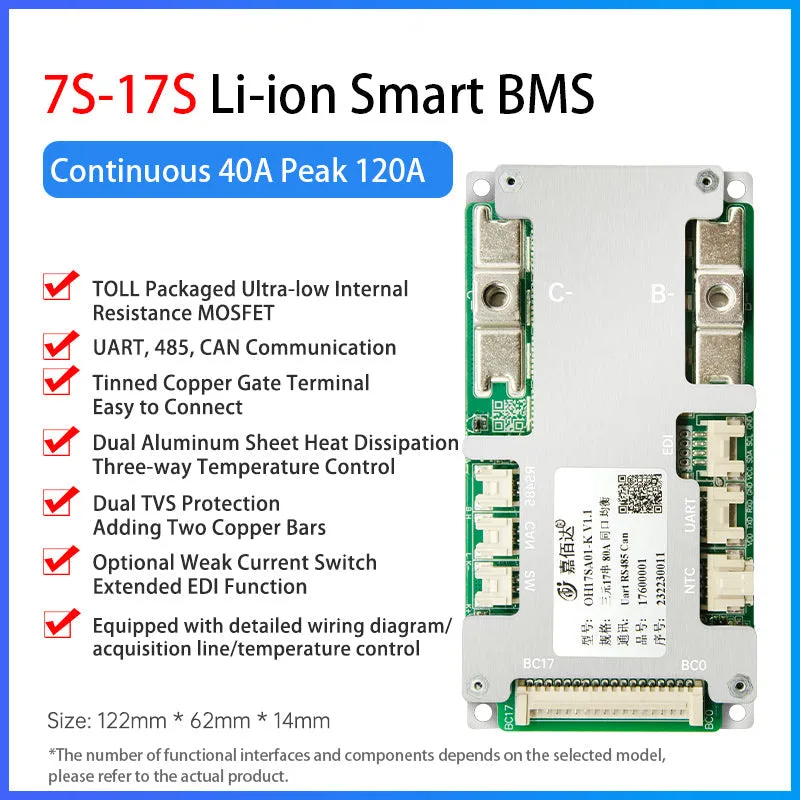

JBD OH17SA01 Smart BMS, 17S Li-ion, 40A, UART + RS485
- Part number
- OH17SA01-KV1.3
- Manufacturer
- JBD
- Package
- –
Balancing Passive, 50 ~ 150 mA
Battery chemistry Li-ion (3.7 V cells)
Cell count 17S (supports 7S ~ 17S)
Chipset O2Micro front-end, HDSC MCU
Continuous charge current 40 A
In stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Balancing
- Passive, 50 ~ 150 mA
- Battery chemistry
- Li-ion (3.7 V cells)
- Cell count
- 17S (supports 7S ~ 17S)
- Chipset
- O2Micro front-end, HDSC MCU
- Continuous charge current
- 40 A
- Continuous discharge current
- 40 A
- Dimensions
- 122 × 62 × 14 mm
- Features
- Capacity calculation, Sleep mode, Adjustable protection settings, Three-channel temperature control, Dual TVS protection, TOLL low-resistance MOSFETs
- Hardware version
- KV1.3
- Interface
- UART, RS485
- Main circuit resistance
- ≤ 10 mΩ
- Operating temperature (°C)
- -20 ~ +75
- Pack voltage
- 62.9 V nominal (17 × 3.7 V)
- Peak current
- 120 A
- Protection functions
- Overcharge, Over-discharge, Charge over-current, Discharge over-current, Temperature
- Self-consumption
- ≤ 20 mA running, ≤ 350 µA sleep, ≤ 50 µA off
- Shutdown delay
- 120 s ± 40 s
- Sleep delay
- 60 s ± 20 s with no current
