1 / 2Image 1 of 2

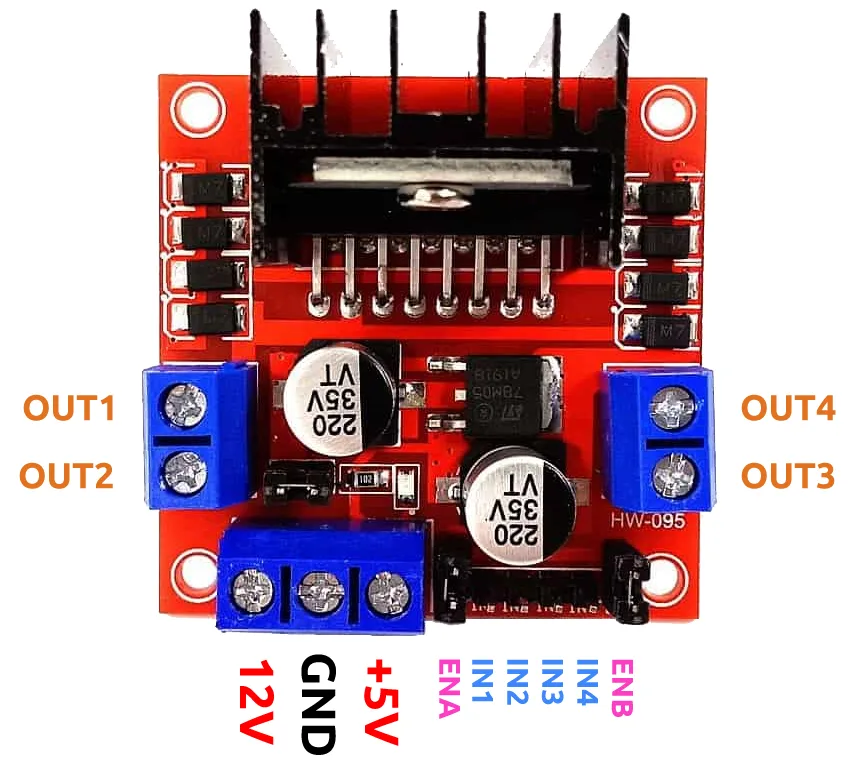

L298N Dual H-Bridge Motor Driver Module
- Part number
- L298N
- Manufacturer
- –
- Package
- –
Chip STMicroelectronics L298N (Multiwatt15)
Features Over-temperature protection, Drives 2 DC motors or 1 stepper motor
Logic inputs TTL, 2 enable inputs for PWM
Logic supply voltage 5 V (7 V max)
Motor supply voltage Up to 46 V (chip rating)
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Chip
- STMicroelectronics L298N (Multiwatt15)
- Features
- Over-temperature protection, Drives 2 DC motors or 1 stepper motor
- Logic inputs
- TTL, 2 enable inputs for PWM
- Logic supply voltage
- 5 V (7 V max)
- Motor supply voltage
- Up to 46 V (chip rating)
- Number of channels
- 2 H-bridges
- Operating junction temperature (°C)
- -25 ~ +130
- Output current
- 2 A per channel continuous, 3 A peak (non-repetitive), 4 A total
- Power dissipation
- 25 W (case at 75 °C)
