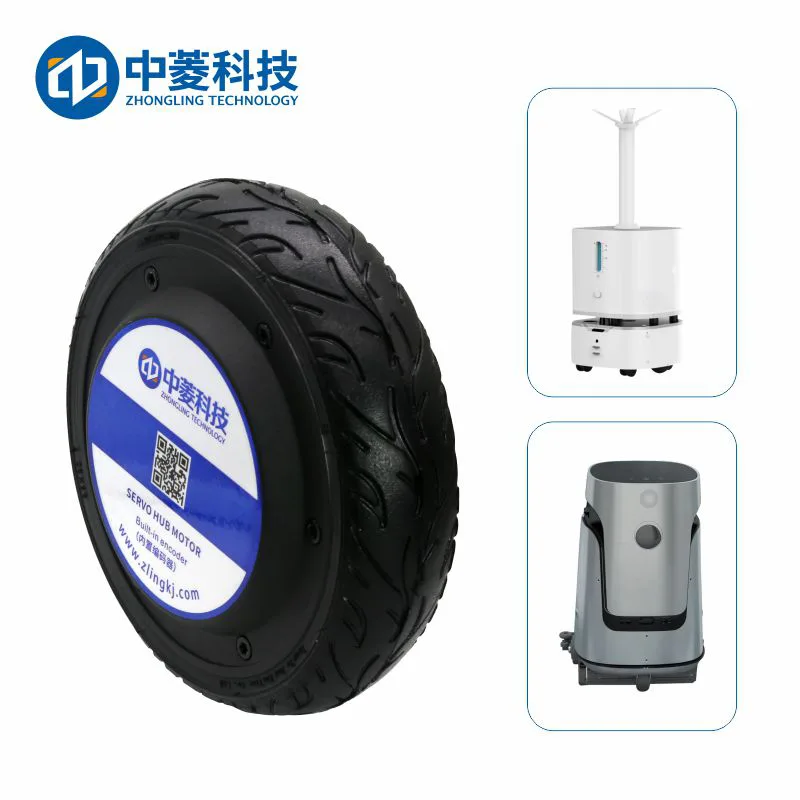

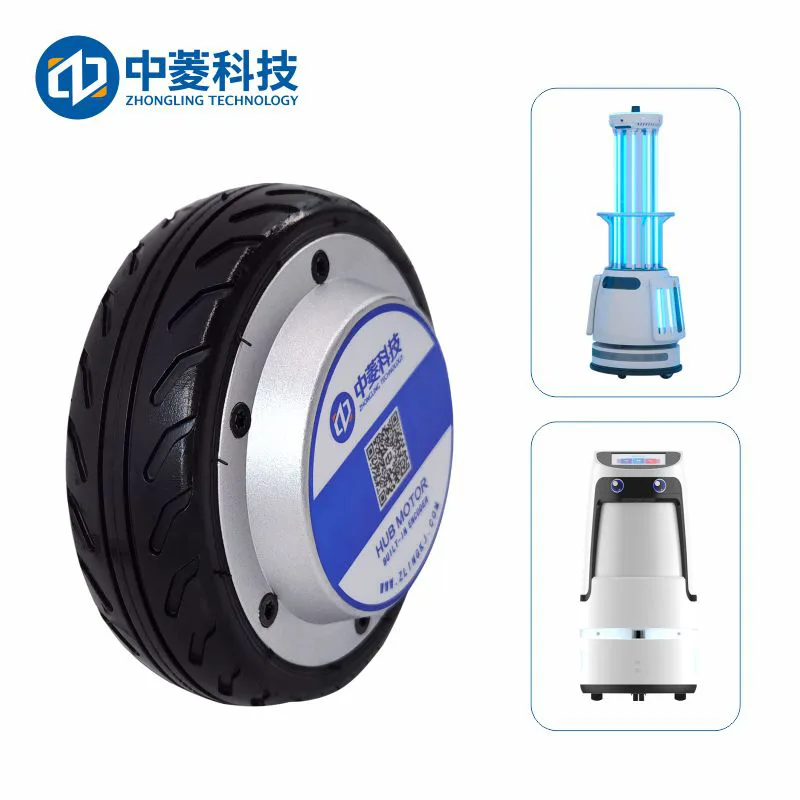

ZLTECH 24V BLDC Hub Servo Wheel Motor, 4096-Line Encoder
- Part number
- –
- Manufacturer
- ZLTECH
- Package
- –
Cable length 600 ± 50 mm (power and signal)
Compatible driver ZLTECH ZLAC8015D (CANopen / RS485)
Encoder 4096-line, with Hall sensors and thermistor
Humidity 20% ~ 80% RH
Insulation DC 500 V, > 20 MΩ; withstands 600 V AC for 1 min
- Wheel Size
To order · Not on the shelf. Ask us and we will source it.
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Cable length
- 600 ± 50 mm (power and signal)
- Compatible driver
- ZLTECH ZLAC8015D (CANopen / RS485)
- Encoder
- 4096-line, with Hall sensors and thermistor
- Humidity
- 20% ~ 80% RH
- Insulation
- DC 500 V, > 20 MΩ; withstands 600 V AC for 1 min
- Maximum load
- 60 kg per pair (5.0"), 100 kg per pair (6.5", 8.0")
- Maximum speed
- 350 rpm (5.0"), 560 rpm (6.5", 8.0")
- Model
- ZLLG50ASM200 V2.0 (5.0"), ZLLG65ASM250 V3.0 (6.5"), ZLLG80ASM250 V3.0 (8.0")
- Motor type
- Brushless DC hub servo motor
- Operating temperature (°C)
- -20 ~ +40
- Peak current
- 15 A (5.0"), 30 A (6.5", 8.0")
- Peak torque
- 9 N·m (5.0"), 12 N·m (6.5", 8.0")
- Pole pairs
- 10 (5.0"), 15 (6.5", 8.0")
- Power rating (W)
- 200 (5.0"), 250 (6.5", 8.0")
- Rated current
- 5 A (5.0"), 10 A (6.5", 8.0")
- Rated speed
- 270 rpm (5.0"), 500 rpm (6.5", 8.0")
- Rated torque
- 3 N·m (5.0"), 4 N·m (6.5", 8.0")
- Shaft
- Single shaft
- Tyre
- Rubber, 65 ± 5 Shore A
- Voltage rating (V)
- 24
- Weight
- 1.95 kg (5.0"), 3.0 kg (6.5"), 3.55 kg (8.0")
- Wheel diameter
- 131 mm (5.0"), 170 mm (6.5"), 200 mm (8.0")
- Winding inductance
- 1.76 mH ±10% (5.0"), 0.27 mH ±10% (6.5", 8.0")
- Winding resistance
- 0.84 Ω ±10% (5.0"), 0.15 Ω ±10% (6.5", 8.0")
