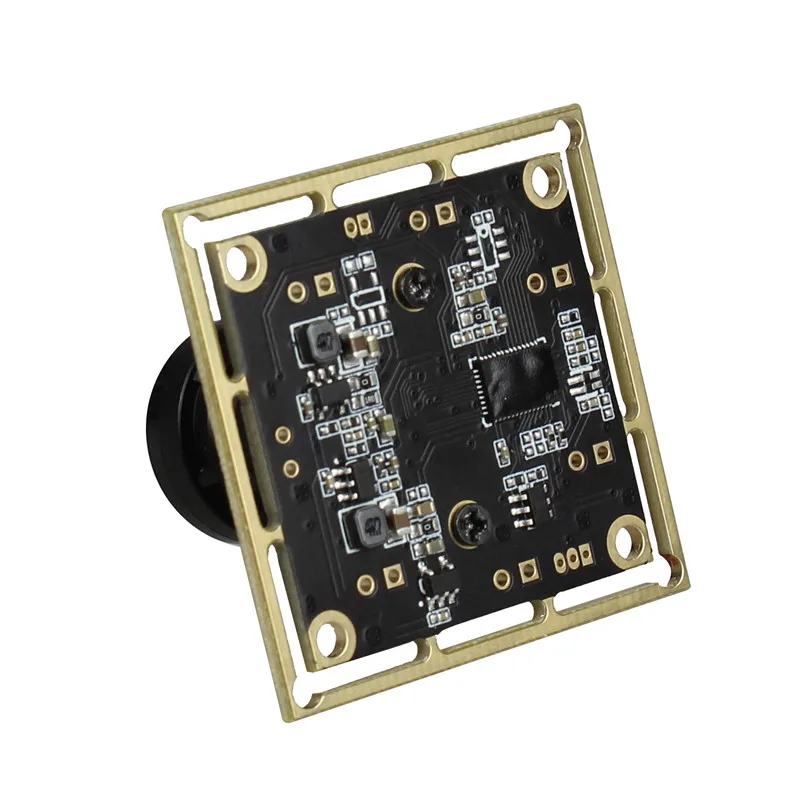

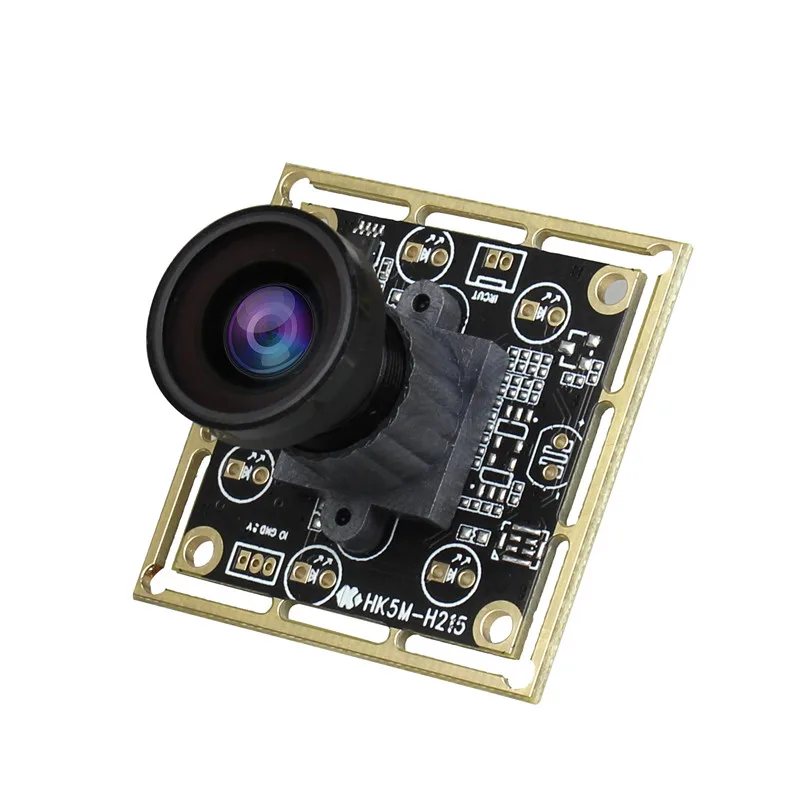

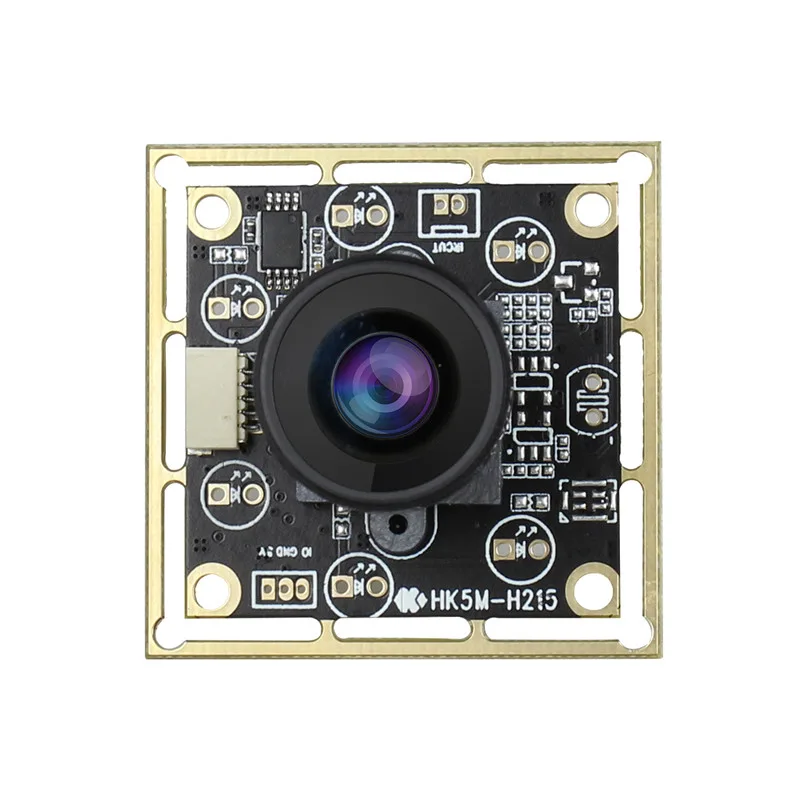

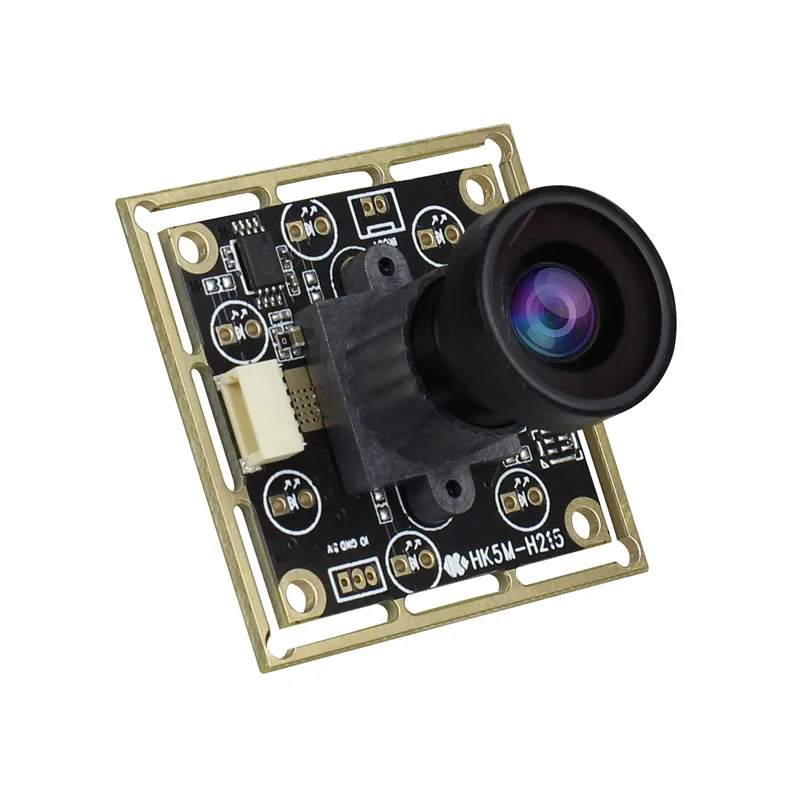

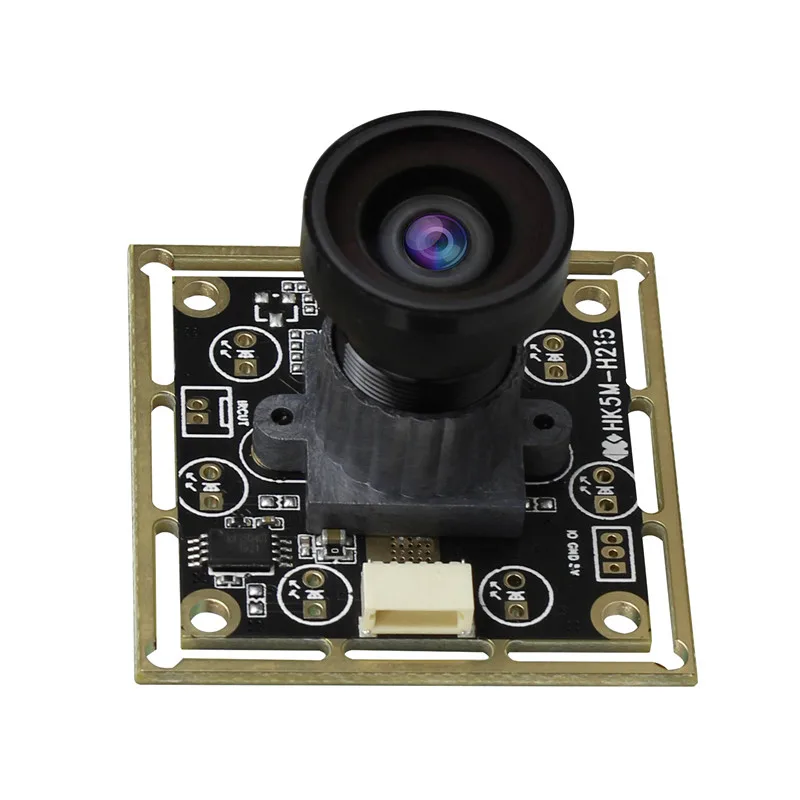

Haokai HK5M-H215 5MP USB Camera Module, Wide Dynamic Range
- Part number
- HK5M-H215
- Manufacturer
- Haokai
- Package
- –
Connector 5-pin, 1.0 mm pitch
Dimensions 38 × 38 × 17.8 mm
Dynamic range 110 dB (hardware WDR)
Field of view 90°
IR-cut filter 650 nm ± 10 nm
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Connector
- 5-pin, 1.0 mm pitch
- Dimensions
- 38 × 38 × 17.8 mm
- Dynamic range
- 110 dB (hardware WDR)
- Field of view
- 90°
- IR-cut filter
- 650 nm ± 10 nm
- Interface
- USB 2.0 (480 Mb/s)
- Lens
- F2.0, 3.5 mm EFL, 2G4P + IR filter
- Maximum resolution
- 2592 × 1944 @ 30 fps (5 MP)
- Microphone
- Built in
- Minimum illumination
- 0.1 lux
- Operating temperature (°C)
- -10 ~ +70
- Other resolutions
- 2560 × 1440, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720, 1024 × 768, 800 × 600, 640 × 480 (all 30 fps)
- Output format
- YUV, MJPG
- Pixel size
- 2.2 µm × 2.2 µm
- Power consumption
- 0.7 W
- Sensor
- PS5520, 1/2.5" CMOS
- Signal-to-noise ratio
- 39 dB
- Storage temperature (°C)
- 0 ~ +50
- Supply voltage
- 5V ± 5% (USB)
- Supported systems
- Windows XP / Vista / 7 and later, Linux, Android 4.1+
