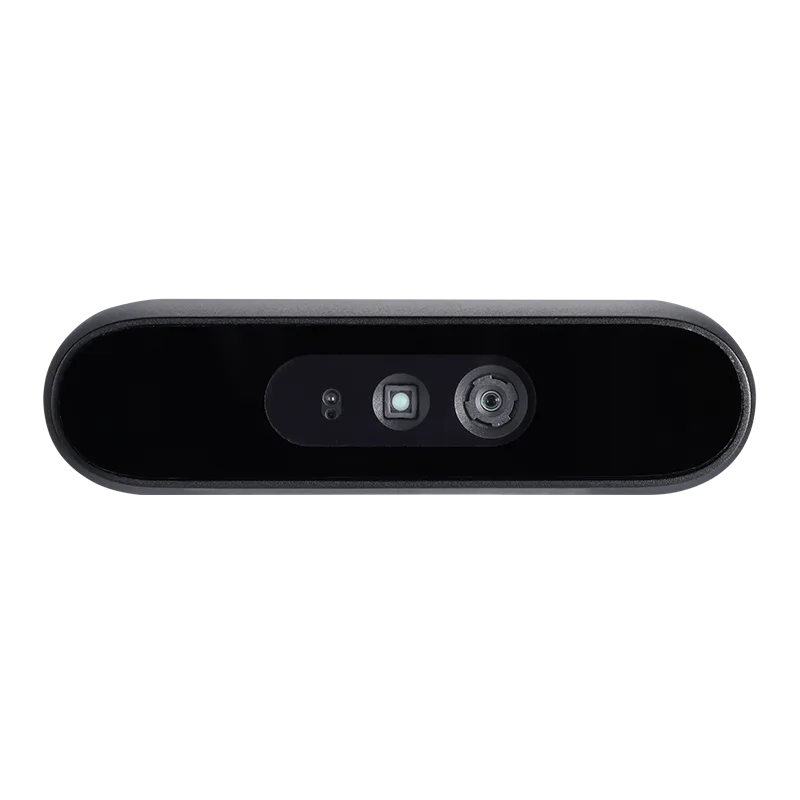

Orbbec Gemini 336 Stereo Depth Camera
- Part number
- Gemini 336
- Manufacturer
- Orbbec
- Package
- –
Baseline 50 mm
Colour field of view 86° × 55° ± 3° (16:9), 70° × 55° ± 3° (4:3)
Colour resolution Up to 1920 × 1080 @ 30 fps
Depth field of view 90° × 65° ± 3° @ 2 m
Depth filter IR-pass
In stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Baseline
- 50 mm
- Colour field of view
- 86° × 55° ± 3° (16:9), 70° × 55° ± 3° (4:3)
- Colour resolution
- Up to 1920 × 1080 @ 30 fps
- Depth field of view
- 90° × 65° ± 3° @ 2 m
- Depth filter
- IR-pass
- Depth processor
- Orbbec MX6800 ASIC
- Depth range
- 0.1 m ~ 20 m+
- Depth resolution
- Up to 1280 × 800 @ 30 fps
- Depth technology
- Stereo vision with 850 nm laser dot projector
- Dimensions
- 90 × 25 × 30.7 mm
- ESD protection
- ±8 kV contact, ±15 kV air
- Environment
- Indoor and outdoor
- Features
- Hardware depth-to-colour alignment, Hardware timestamps, Multi-camera sync, UVC
- HDR depth
- Supported
- Humidity
- 5% ~ 90% RH, non-condensing
- IMU
- 6-axis gyroscope and accelerometer, 50 Hz ~ 1 kHz
- Ideal range
- 0.26 m ~ 3 m
- Interface
- USB 3.0 / USB 2.0 Type-C (data and power)
- Lifespan
- 5 years (up to 16 h a day)
- Minimum depth distance
- 0.26 m @ 1280 × 800, 0.10 m @ 424 × 240

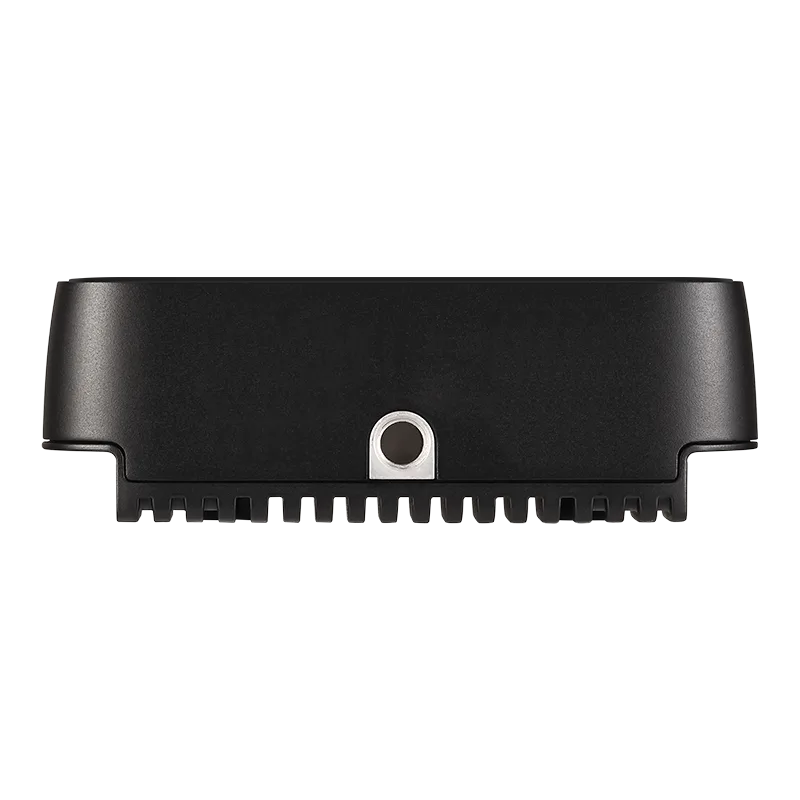

- Mounting
- 1 × 1/4-20 UNC (bottom), 2 × M3 (back)
- Operating temperature (°C)
- -10 ~ +45 (15 fps), -10 ~ +40 (30/60 fps)
- Power consumption
- < 3.0 W average, < 6.5 W peak
- Protection rating
- IP5X
- Shutter
- Global (IR), rolling (colour)
- Software support
- Orbbec SDK, ROS
- Spatial precision
- ≤ 0.8% @ 2 m (1280 × 800, 90% ROI)
- Storage temperature (°C)
- -20 ~ +70 (short term), 0 ~ +60 (long term)
- Weight
- 99 g
