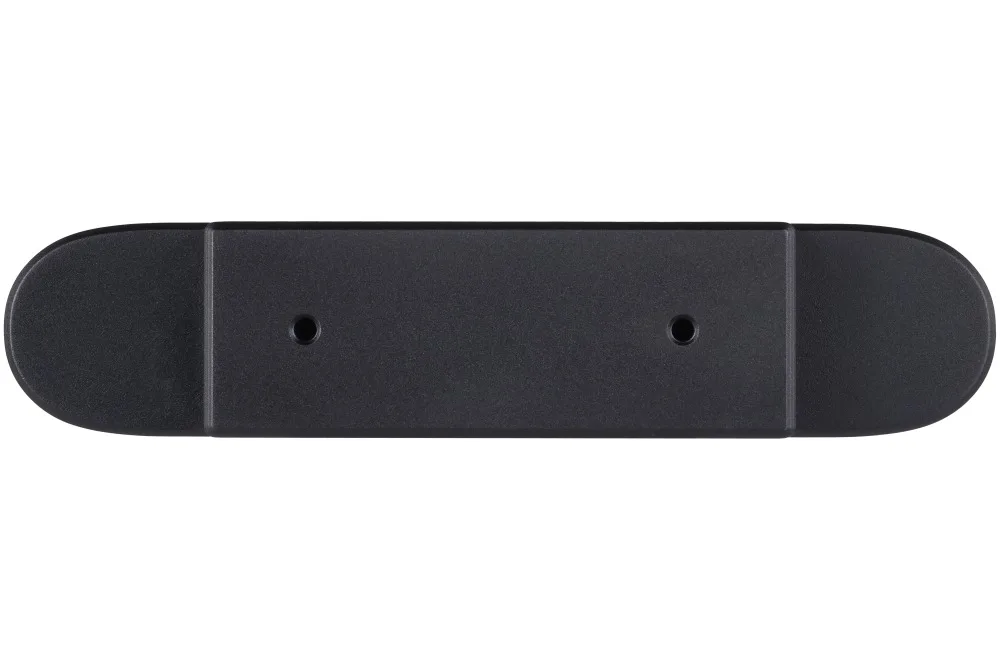

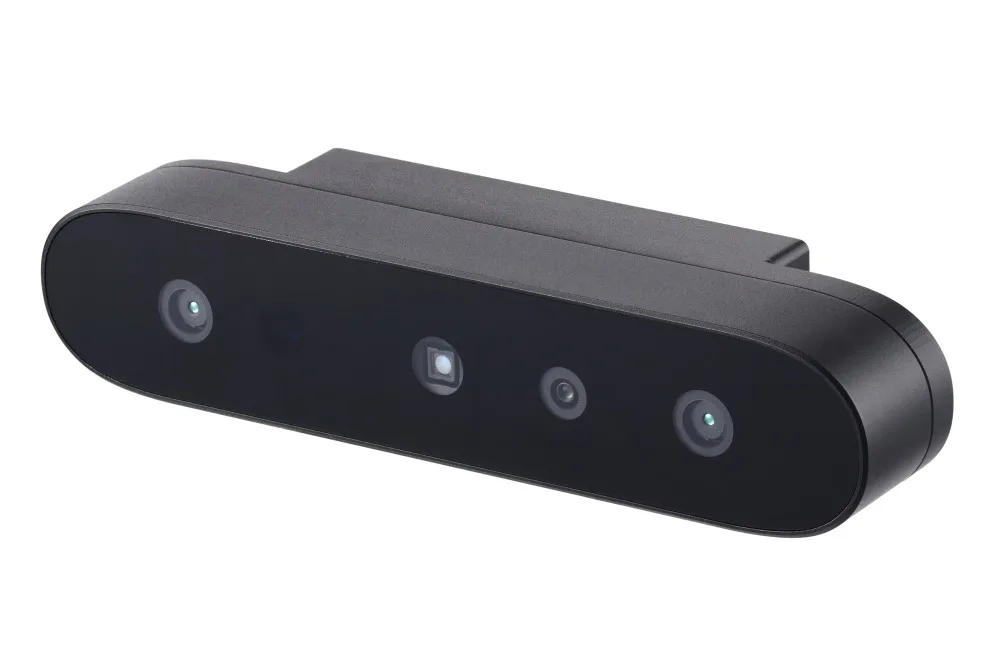

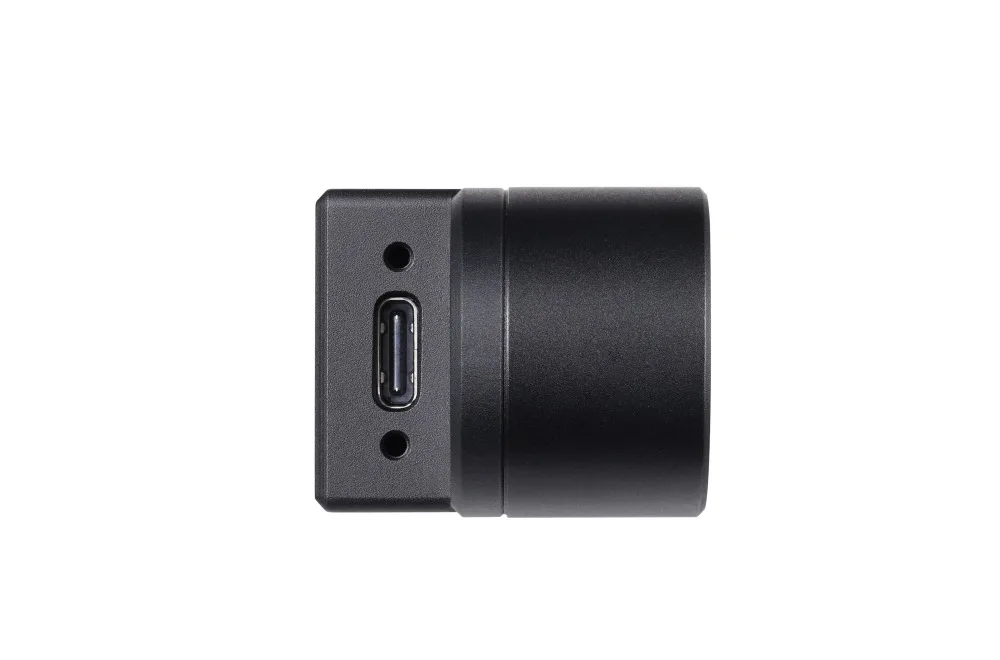

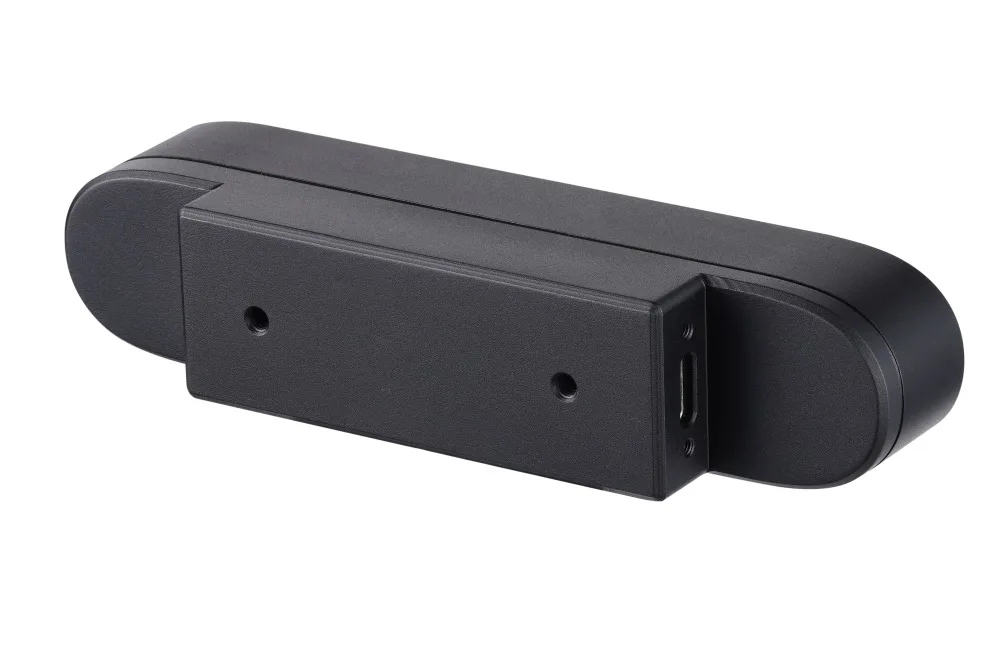

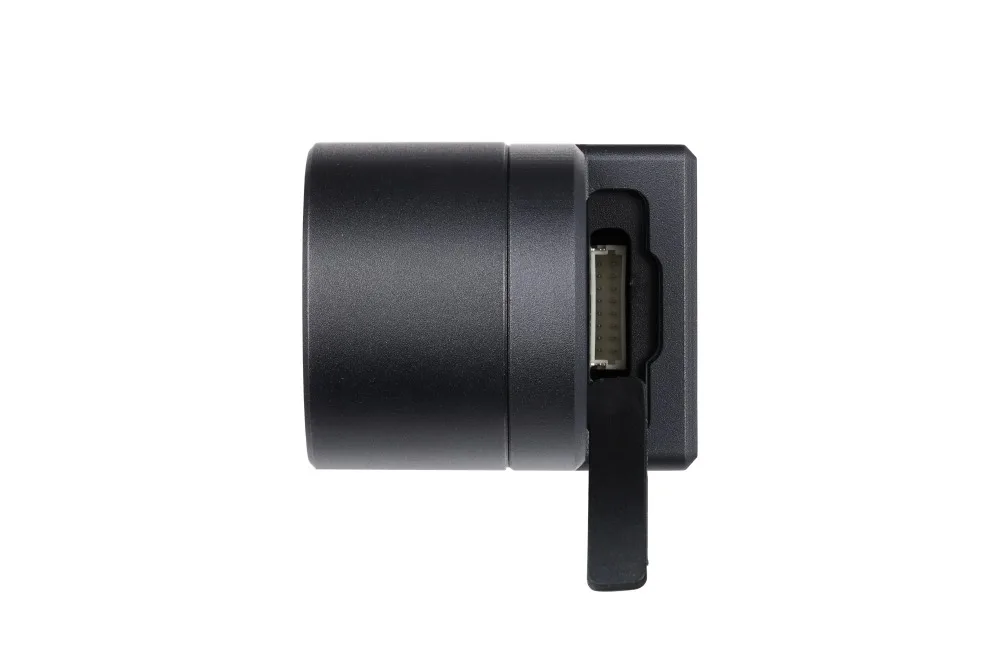

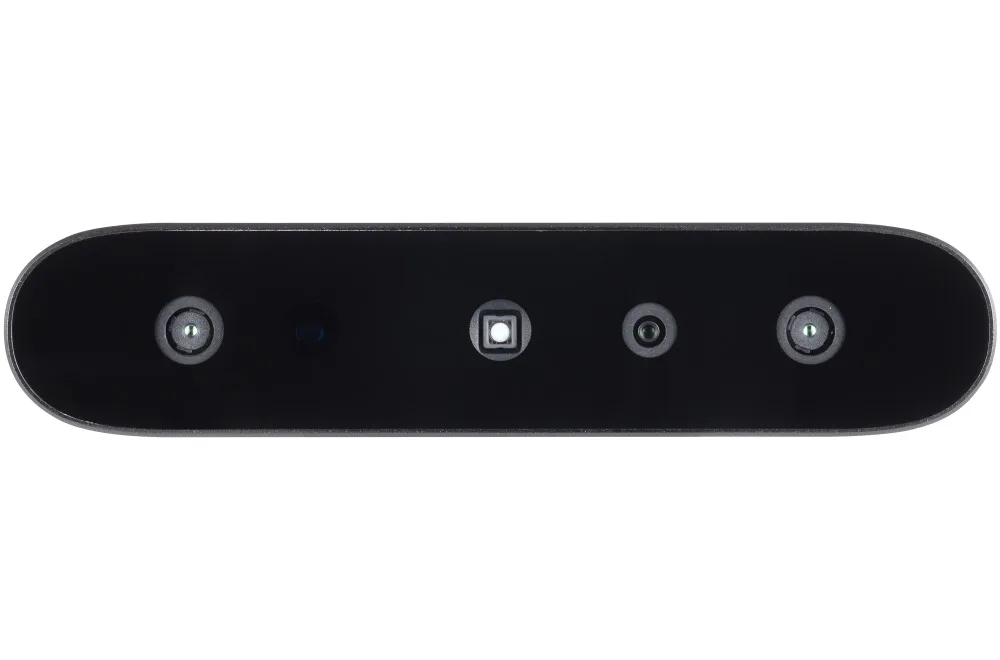

Orbbec Gemini 215 Short-Range Stereo Depth Camera, 0.15 to 0.7 m
- Part number
- G20000-150
- Manufacturer
- Orbbec
- Package
- –
Capture zone 127 × 126 mm @ 0.15 m, 868 × 589 mm @ 0.7 m
Colour field of view 74.7° × 46.2° ± 3°
Colour resolution Up to 1920 × 1080 @ 30 fps
Data output Point cloud, Depth, IR, RGB
Depth field of view 63.5° × 45.6° @ 0.7 m
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Only 1 in stock
Extended price $1.00
- Capture zone
- 127 × 126 mm @ 0.15 m, 868 × 589 mm @ 0.7 m
- Colour field of view
- 74.7° × 46.2° ± 3°
- Colour resolution
- Up to 1920 × 1080 @ 30 fps
- Data output
- Point cloud, Depth, IR, RGB
- Depth field of view
- 63.5° × 45.6° @ 0.7 m
- Depth filter
- IR-pass
- Depth modes
- Close-Up Precision (0.15 ~ 0.30 m), Extended Distance (0.20 ~ 0.70 m)
- Depth processor
- Orbbec ASIC
- Depth range
- 0.15 ~ 0.70 m (ideal 0.2 ~ 0.5 m)
- Depth resolution
- Up to 1280 × 800 @ 30 fps
- Depth technology
- Active stereo, 850 nm
- Dimensions
- 120 × 26 × 30 mm
- Features
- Hardware sync trigger (multi-camera)
- Humidity
- 5% ~ 95% RH, non-condensing
- IMU
- Supported
- Interface
- USB 3.0 / USB 2.0 (USB-C, data and power)
- Mounting
- 1 × 1/4-20 UNC (bottom), 2 × M3 (back)
- Operating temperature (°C)
- 0 ~ +40 (indoor)
- Power consumption
- < 2.5 W average, < 7.0 W max
- Software support
- Orbbec SDK v2 (open source)
- Spatial precision
- < 0.5 mm @ 0.3 m (1280 × 800)
- Weight
- 105 g ± 3 g
