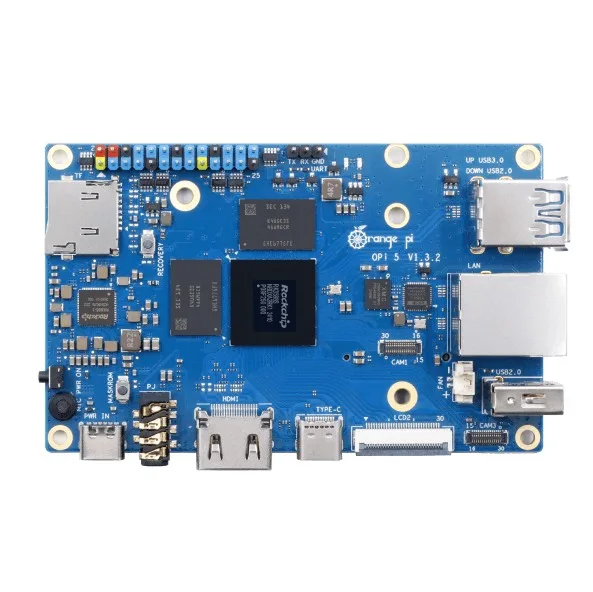

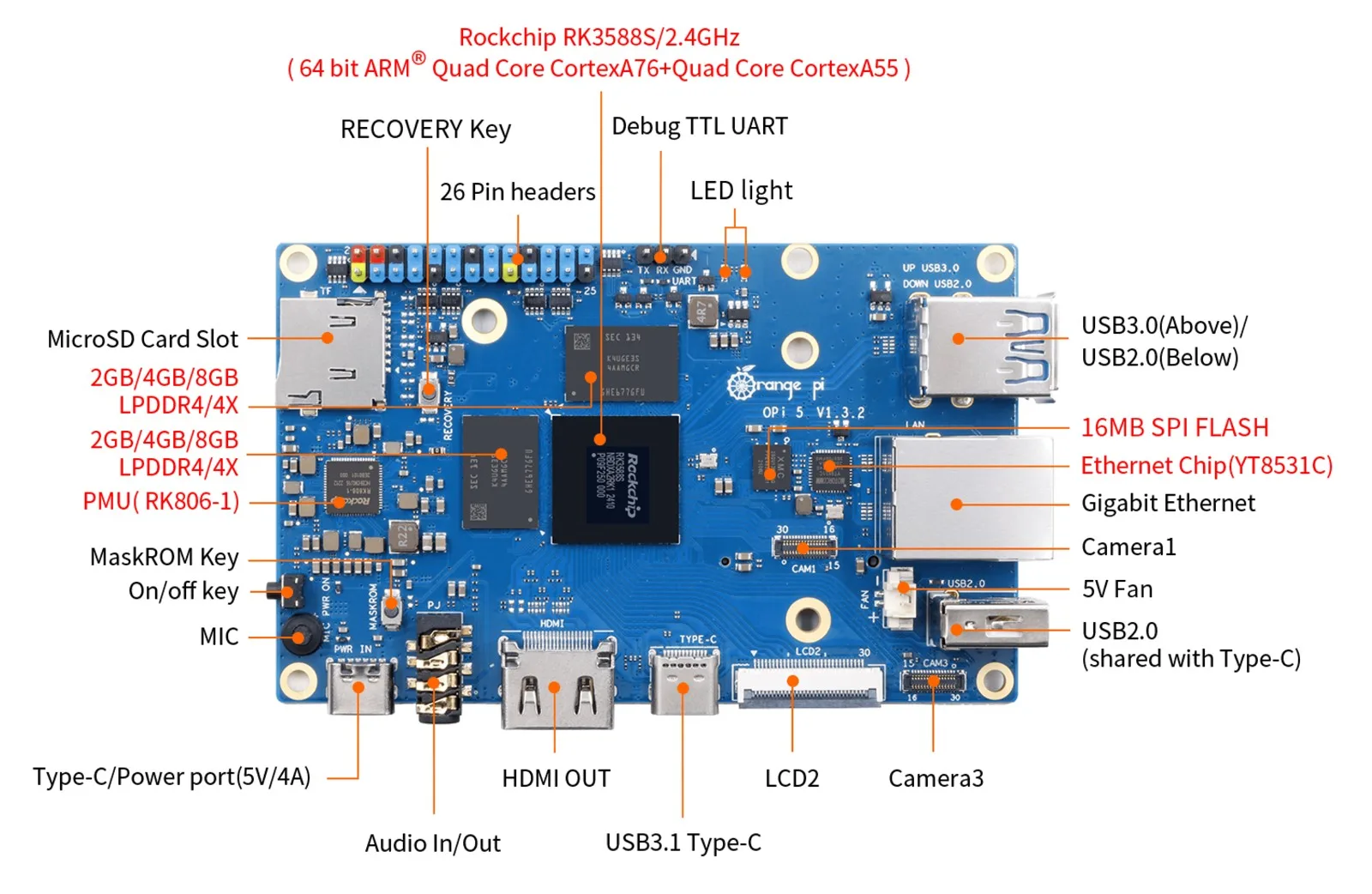

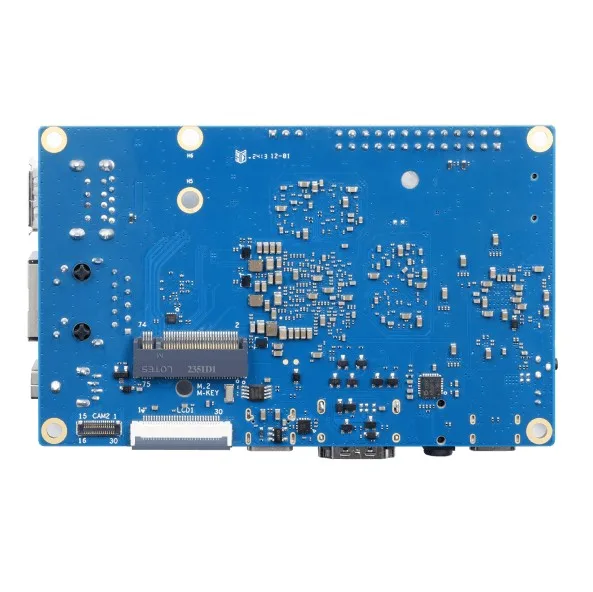

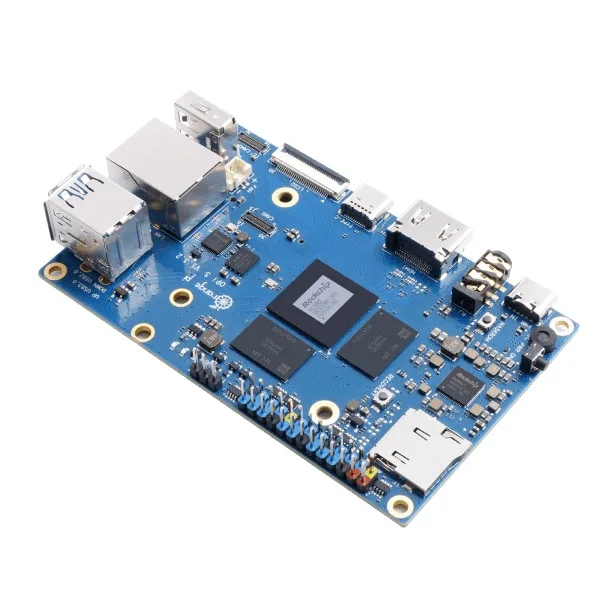

Orange Pi 5 Single-Board Computer, RK3588S, 6 TOPS NPU
- Part number
- Orange Pi 5
- Manufacturer
- Orange Pi
- Package
- –
Audio ES8388 codec, 3.5 mm jack (in/out), on-board mic, HDMI eARC
Buttons MaskROM, Recovery, On/Off
CPU 8-core: 4 × Cortex-A76 @ 2.4 GHz + 4 × Cortex-A55 @ 1.8 GHz
Camera inputs 1 × 4-lane MIPI CSI, 2 × 4-lane MIPI D-PHY RX
Dimensions 62 × 100 mm
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Only 1 in stock
Extended price $1.00
- Audio
- ES8388 codec, 3.5 mm jack (in/out), on-board mic, HDMI eARC
- Buttons
- MaskROM, Recovery, On/Off
- CPU
- 8-core: 4 × Cortex-A76 @ 2.4 GHz + 4 × Cortex-A55 @ 1.8 GHz
- Camera inputs
- 1 × 4-lane MIPI CSI, 2 × 4-lane MIPI D-PHY RX
- Dimensions
- 62 × 100 mm
- Display outputs
- HDMI 2.1 (up to 8K @ 60 Hz), DP 1.4 via USB-C, 2 × 4-lane MIPI D-PHY TX (up to 4K @ 60 Hz)
- Ethernet
- Gigabit (10/100/1000 Mbps)
- Expansion header
- 26-pin: UART, PWM, I2C, SPI, CAN, GPIO
- GPU
- Arm Mali-G610 MP4 (OpenGL ES 3.2, OpenCL 2.2, Vulkan 1.2)
- Memory
- 4 GB / 8 GB / 16 GB LPDDR4/4X (by version)
- NPU
- 6 TOPS (INT4 / INT8 / INT16)
- Other connectors
- 5 V fan, 3-pin debug UART
- Power input
- USB-C, 5 V / 4 A
- SoC
- Rockchip RK3588S (8 nm)
- Storage
- 16 MB QSPI NOR, microSD, M.2 M-key (PCIe NVMe)
- Supported systems
- Orange Pi OS (Droid / Arch), Ubuntu, Debian, Android 12
- USB port
- 1 × USB 3.0, 2 × USB 2.0, 1 × USB-C 3.1 (with DP 1.4)
- Weight
- 46 g
- Wi-Fi
- Optional (PCIe Wi-Fi 6 + BT 5.0 module in the M.2 slot)
