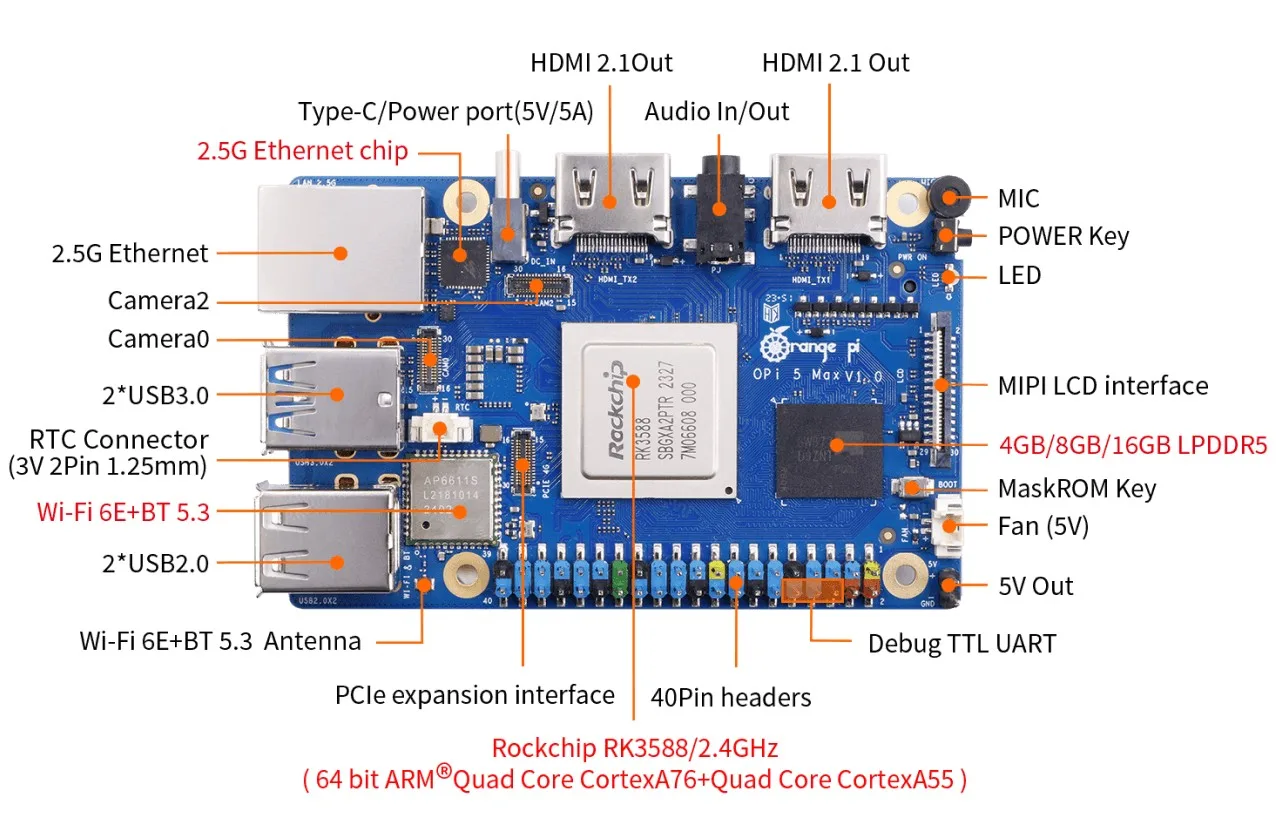

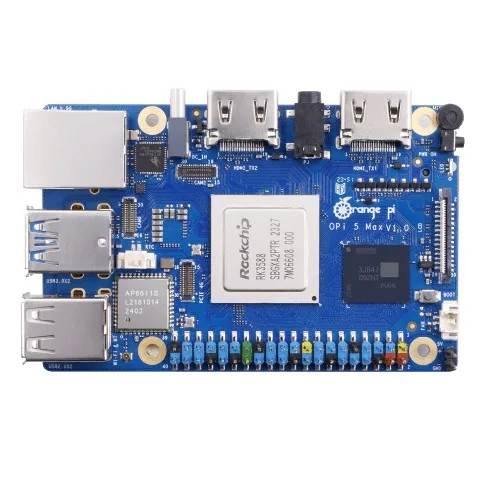

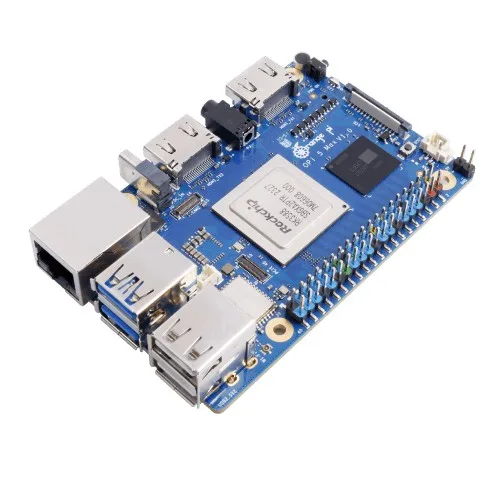

Orange Pi 5 Max Single-Board Computer, RK3588, Wi-Fi 6E, 2.5G Ethernet
- Part number
- Orange Pi 5 Max
- Manufacturer
- Orange Pi
- Package
- –
Audio ES8388 codec, 3.5 mm jack with mic, mic input, HDMI eARC
Bluetooth Bluetooth 5.3 / BLE
Buttons BOOT, power on/off
CPU 8-core: 4 × Cortex-A76 @ 2.4 GHz + 4 × Cortex-A55 @ 1.8 GHz
Camera inputs 2 × 4-lane MIPI CSI, 1 × 4-lane MIPI D-PHY RX
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Audio
- ES8388 codec, 3.5 mm jack with mic, mic input, HDMI eARC
- Bluetooth
- Bluetooth 5.3 / BLE
- Buttons
- BOOT, power on/off
- CPU
- 8-core: 4 × Cortex-A76 @ 2.4 GHz + 4 × Cortex-A55 @ 1.8 GHz
- Camera inputs
- 2 × 4-lane MIPI CSI, 1 × 4-lane MIPI D-PHY RX
- Dimensions
- 89 × 57 × 1.6 mm (PCB)
- Display outputs
- 2 × HDMI 2.1 (up to 8K @ 60 fps), 1 × 4-lane MIPI DSI
- Ethernet
- 2.5 Gbps (RTL8125BG)
- Expansion header
- 40-pin 2.54 mm: UART, PWM, I2C, SPI, CAN, GPIO, 5 V and 3.3 V out
- GPU
- Arm Mali-G610 (OpenGL ES 3.2, OpenCL 2.2, Vulkan 1.2)
- Memory
- 4 GB / 8 GB / 16 GB LPDDR5 (by version)
- NPU
- 6 TOPS (INT4 / INT8 / INT16 / FP16)
- Other connectors
- 5 V fan (2-pin 1.25 mm), RTC battery (2-pin 1.25 mm)
- Power input
- USB-C, 5 V / 5 A
- SoC
- Rockchip RK3588
- Storage

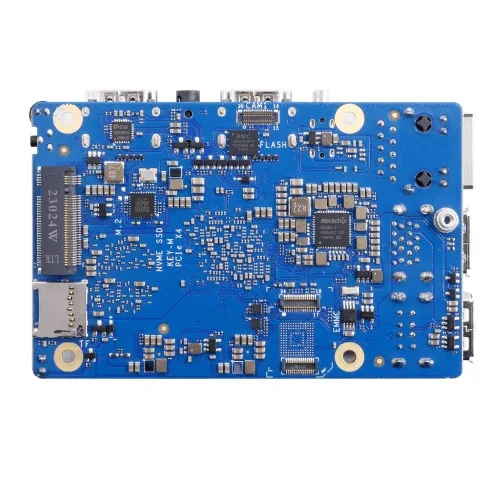

- eMMC socket (32 ~ 256 GB modules), 16 MB QSPI NOR, microSD, M.2 M-key (PCIe 3.0 ×4 NVMe)
- Supported systems
- Orange Pi OS (Droid / Arch / OH), Ubuntu, Debian, Android 13
- USB port
- 2 × USB 3.0, 2 × USB 2.0
- Weight
- 62 g
- Wi-Fi
- Wi-Fi 6E (AP6611, on board)
