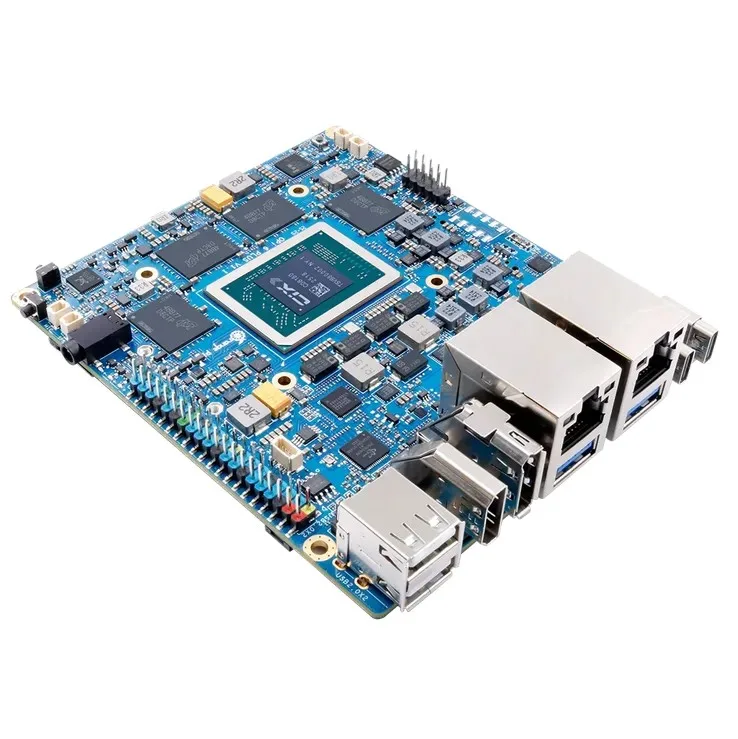

Orange Pi 6 Plus Single-Board Computer, 12-Core CIX SoC, 45 TOPS AI
- Part number
- Orange Pi 6 Plus
- Manufacturer
- Orange Pi
- Package
- –

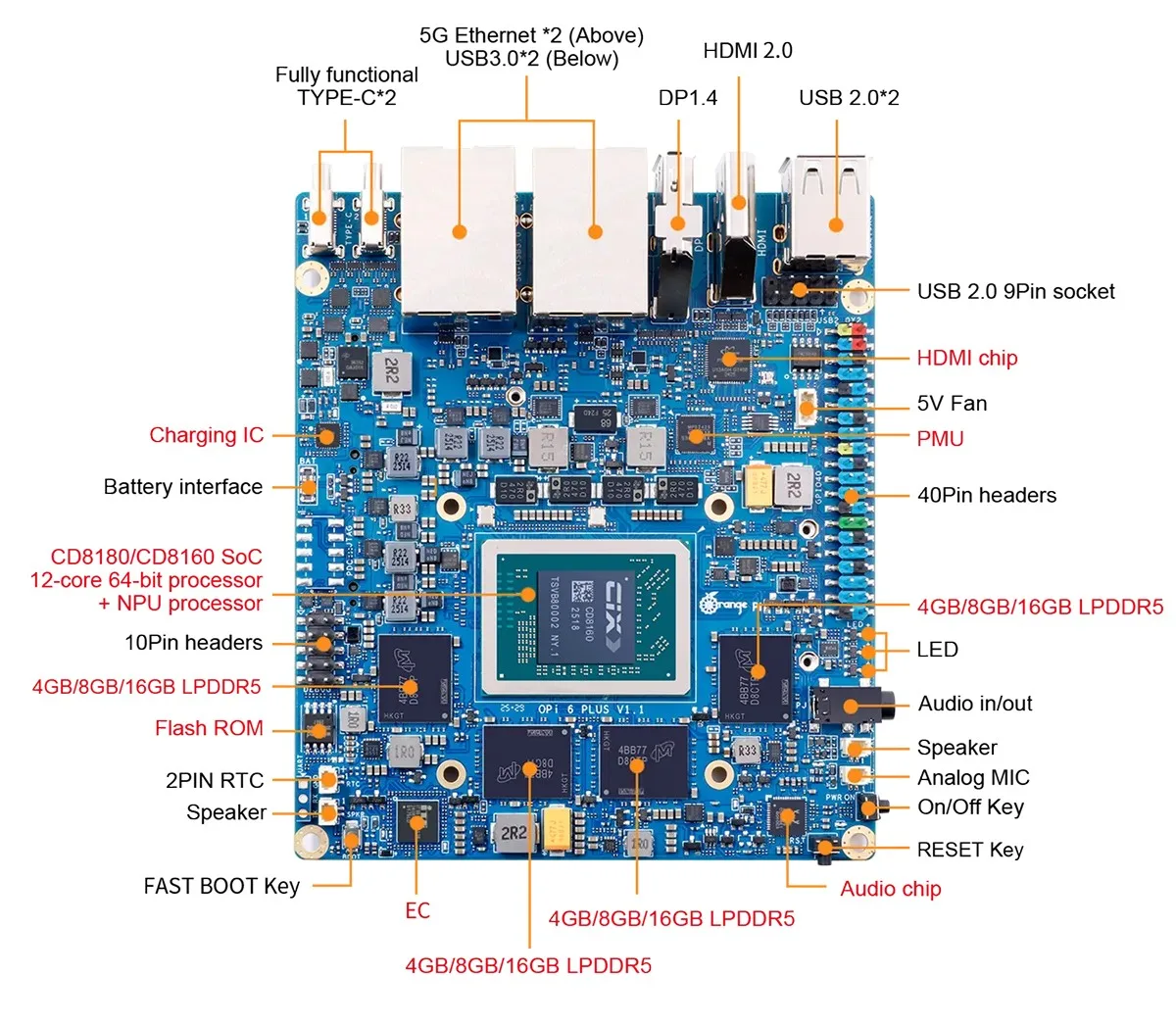

AI performance 45 TOPS combined (CPU + NPU + GPU)
Audio 3.5 mm jack (in/out), 2 × speaker, analog microphone
Buttons Power, BOOT, RESET
CPU 12-core 64-bit
Camera inputs 2 × 4-lane MIPI CSI
In stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- AI performance
- 45 TOPS combined (CPU + NPU + GPU)
- Audio
- 3.5 mm jack (in/out), 2 × speaker, analog microphone
- Buttons
- Power, BOOT, RESET
- CPU
- 12-core 64-bit
- Camera inputs
- 2 × 4-lane MIPI CSI
- Dimensions
- 115 × 100 mm
- Display outputs
- DP 1.4 (4K @ 120 Hz), 2 × USB-C DP, HDMI 2.0 (4K @ 60 Hz), eDP (4K @ 60 Hz)
- Ethernet
- 2 × 5 Gbps
- Expansion header
- 40-pin: GPIO, UART, I2C, SPI, PWM
- GPU
- Integrated GPU
- Memory
- 16 GB / 32 GB / 64 GB LPDDR5, 128-bit (by version)
- NPU
- 28.8 TOPS
- Other connectors
- PWM fan, 2-pin RTC battery, board-to-board battery
- Power input
- USB-C PD 20 V (100 W adapter)
- SoC
- CIX CD8180 / CD8160
- Storage
- 2 × M.2 M-key 2280 (PCIe ×4 NVMe), microSD, 64 Mbit SPI flash
- Supported systems
- Debian, Ubuntu, Android, Windows, ROS 2
- USB port
- 2 × USB 3.0, 2 × USB 2.0, 2 × USB-C 3.0 (full function), USB 2.0 9-pin header
- Weight
- 132 g
- Wi-Fi
- Via M.2 E-key module socket
