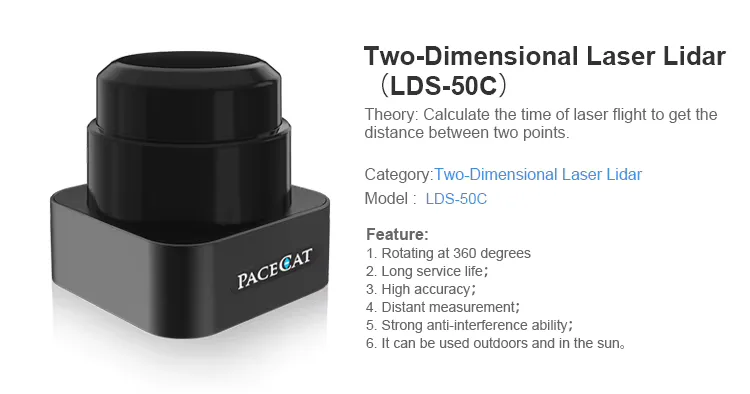

PaceCat LDS-50C-R 360° 2D LiDAR, 40 m, UART
- Part number
- LDS-50C-R
- Manufacturer
- PaceCat
- Package
- –
Ambient light resistance > 80,000 lux
Angular resolution 0.2° @ 10 Hz, 0.3° @ 15 Hz
Dimensions 55.5 × 55.5 × 51.7 mm
Echo intensity 0 ~ 255
Echo mode Single pulse
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Extended price $1.00
- Ambient light resistance
- > 80,000 lux
- Angular resolution
- 0.2° @ 10 Hz, 0.3° @ 15 Hz
- Dimensions
- 55.5 × 55.5 × 51.7 mm
- Echo intensity
- 0 ~ 255
- Echo mode
- Single pulse
- Interface
- UART 3.3V
- Laser safety
- Class 1
- Laser wavelength
- 905 nm ± 15 nm
- Measuring range
- 0.1 ~ 40 m (90% reflectivity), 0.1 ~ 15 m (10%)
- Motor
- Built-in brushless DC motor
- Operating temperature (°C)
- -10 ~ +50
- Power consumption
- ≤ 2.5 W
- Protection rating
- IP5X / IP54
- Ranging accuracy
- ±25 mm
- Ranging principle
- Time of flight (ToF)
- Sample rate
- 18 kHz
- Scan angle
- 360°
- Scan frequency
- 10 Hz / 15 Hz
- Supply voltage
- 5.1V ± 0.2V
- Weight
- < 108 g
