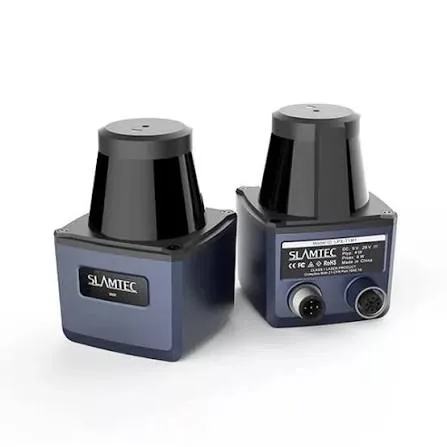

Slamtec LPX-T1 270° Industrial LiDAR, 40 m, Ethernet, IP66
- Part number
- LPX-T1M4
- Manufacturer
- Slamtec
- Package
- –
Ambient light resistance 80,000 lux (outdoor mode)
Angular resolution 0.12° @ 20 Hz
Connector Power: 5-pin M12, with sync output

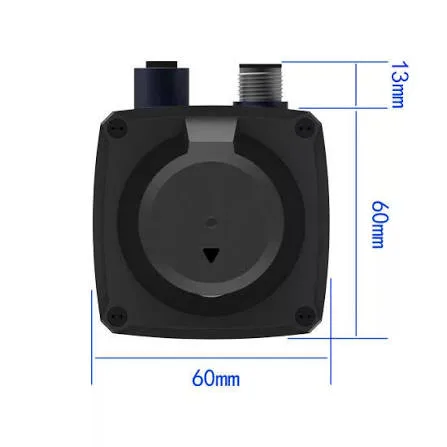

Dimensions 60 × 73 × 85 mm
Features Indoor and outdoor use, Vibration and shock rated (IEC 60068-2-6 / 2-27)
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Only 1 in stock
Extended price $1.00
- Ambient light resistance
- 80,000 lux (outdoor mode)
- Angular resolution
- 0.12° @ 20 Hz
- Connector
- Power: 5-pin M12, with sync output
- Dimensions
- 60 × 73 × 85 mm
- Features
- Indoor and outdoor use, Vibration and shock rated (IEC 60068-2-6 / 2-27)
- Interface
- Ethernet (4-pin M12)
- Laser safety
- Class 1 (IEC 60825-1:2014)
- Laser wavelength
- 905 nm
- Measuring range
- 0.05 ~ 40 m (70% reflectivity)
- Operating temperature (°C)
- -20 ~ +50
- Power consumption
- 4 W typical
- Protection rating
- IP66
- Range resolution
- 8 mm
- Ranging accuracy
- 20 mm statistical error (within 10 m)
- Ranging principle
- Time of flight (ToF)
- Sample rate
- 60 kHz
- Scan angle
- 270°
- Scan frequency
- 20 ~ 40 Hz
- Storage temperature (°C)
- -40 ~ +75
- Supply voltage
- 9V ~ 28V DC (12V typical)
- Target reflectivity
- 4% ~ > 1000% (reflector)
- Weight
- 264 g (without cables)
