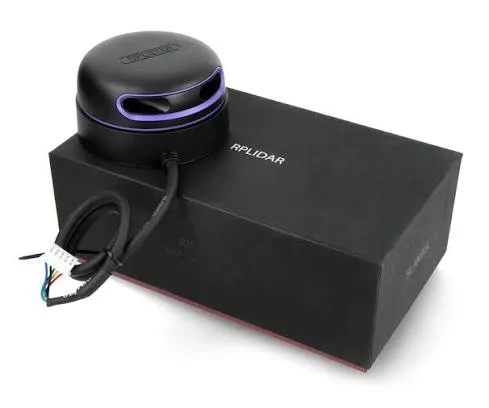

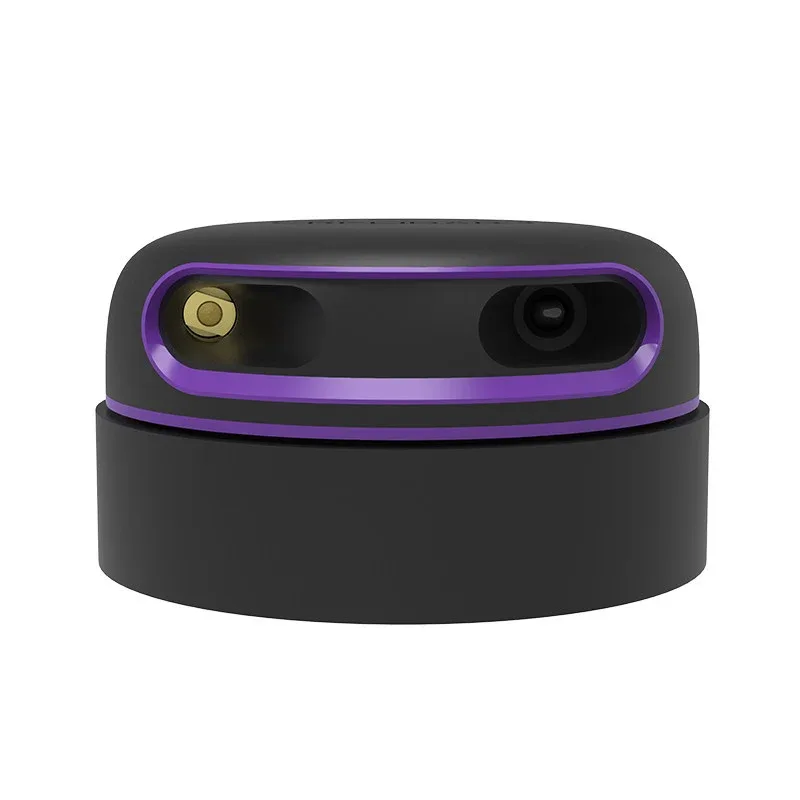

Slamtec RPLIDAR A2M12 360° 2D LiDAR, 12 m, 16 kHz
- Part number
- A2M12
- Manufacturer
- Slamtec
- Package
- –
Angular resolution 0.225°
Dimensions Ø 76 × 41 mm
Interface TTL UART, 256,000 baud
Laser safety Class 1 (IEC 60825)
Laser wavelength 785 nm (775 ~ 795 nm)
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Only 1 in stock
Extended price $1.00
- Angular resolution
- 0.225°
- Dimensions
- Ø 76 × 41 mm
- Interface
- TTL UART, 256,000 baud
- Laser safety
- Class 1 (IEC 60825)
- Laser wavelength
- 785 nm (775 ~ 795 nm)
- Measuring range
- 0.2 ~ 12 m (white), 10 m (black)
- Operating temperature (°C)
- 0 ~ +40
- Ranging principle
- Laser triangulation
- Sample rate
- 16 kHz (Enhanced mode)
- Scan angle
- 360°
- Scan frequency
- 5 ~ 15 Hz (10 Hz typical)
- Software support
- Slamtec SDK, ROS
- Supply current
- 450 mA typical, 600 mA max, 1.5 A at start-up
- Supply voltage
- 5V (4.9 ~ 5.2V)
- Weight
- 190 g
