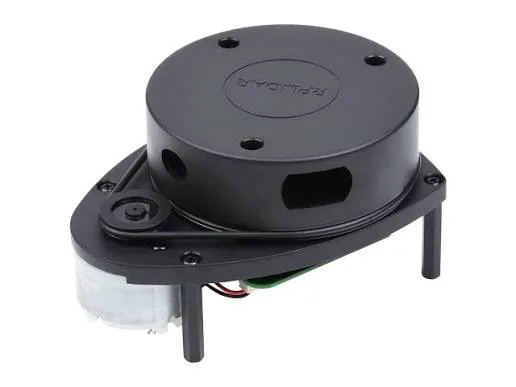

Slamtec RPLIDAR A1M8 360° 2D LiDAR, 12 m
- Part number
- A1M8
- Manufacturer
- Slamtec
- Package
- –
Angular resolution ≤ 1° (at 5.5 Hz)
Dimensions 96.8 × 70.3 × 55 mm
Interface 3.3V TTL UART, 115,200 baud
Laser safety Class 1
Laser wavelength 785 nm (775 ~ 795 nm)
Low stock Ships next business day
| Quantity | Unit price | Ext. price |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Quantity
Only 1 in stock
Extended price $1.00
- Angular resolution
- ≤ 1° (at 5.5 Hz)
- Dimensions
- 96.8 × 70.3 × 55 mm
- Interface
- 3.3V TTL UART, 115,200 baud
- Laser safety
- Class 1
- Laser wavelength
- 785 nm (775 ~ 795 nm)
- Measuring range
- 0.15 ~ 12 m (white objects)
- Operating temperature (°C)
- 0 ~ +40
- Range resolution
- < 0.5 mm under 1.5 m, < 1% of distance
- Ranging principle
- Laser triangulation
- Sample rate
- ≥ 8 kHz
- Scan angle
- 360°
- Scan frequency
- 1 ~ 10 Hz (5.5 Hz typical)
- Software support
- Slamtec SDK, ROS
- Supply current
- 300 mA scanning, 80 mA sleep, 500 mA at start-up
- Supply voltage
- Scanner 5V (4.9 ~ 5.5V), motor 5 ~ 9V
- Weight
- 170 g
